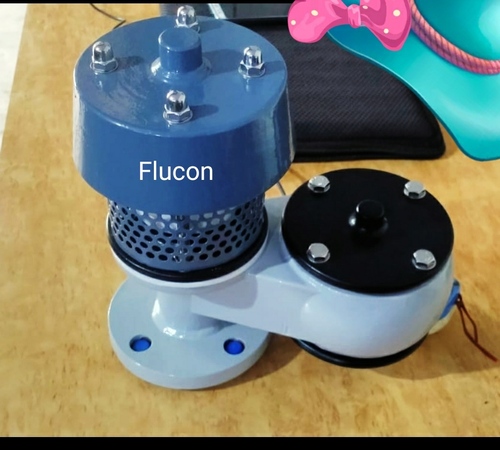

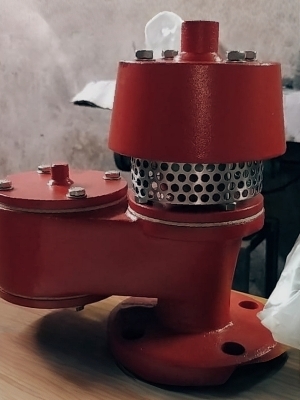

Breather Valve

Name: Breather Valve
Brand: FLUCON ENGINEERS
Price: 7500.0 INR
Availability: InStock

Price 7500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Breather Valve Specification

Structure
Safety

Usage
Industrial

Material
Carbon Steel

Size
Standard

Media
Gas

Product Type
Breather valve

Color
Silver/ Red

Surface
Powder Coated

Width
As per model Millimeter (mm)

Length
As per model Millimeter (mm)

Application
designed to protect storage tanks and industrial process systems from damage caused by excessive pressure or vacuum buildup.

Breather Valve Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA)

Supply Ability
10 Per Week

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India, South India, Central India, East India, Gujarat, Karnataka, Kerala, Goa, Jharkhand, Chhattisgarh, Haryana, Himachal Pradesh, West India, North India, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

About Breather Valve

Body moc cs ss304/316 Aluminum PTFE Lined etc..

Here is a clear complete and easytouse explanation ABOUT a Breather Valve PressureVacuum Relief Valve If you want it shorter or more technical just tell me

Breather Valve PressureVacuum Relief Valve Overview

A breather valve is a safety device installed on atmospheric or lowpressure storage tanks to control pressure and vacuum inside the tank It allows the tank to breathe as the liquid level and temperature change

It prevents tank collapse overpressure and product loss

1 Purpose

Breather valves are designed to

Relieve excess pressure when vapors expand

Relieve vacuum when liquid is withdrawn or during cooling

Reduce evaporative losses VOC emissions

Protect tank integrity under API 650 API 2000 conditions

They are often combined with endofline flame arrestors for fire safety

2 How a Breather Valve Works

Inside the valve are two elements

Pressure Pallet

Opens when tank pressure rises above the setpoint

Allows vapors to escape to the atmosphere or vapor recovery system

Vacuum Pallet

Opens when tank pressure falls below the vacuum setpoint

Allows air to enter the tank to equalize pressure

Both pallets are typically

Weighted or

Springloaded

Setpoints are usually very low inches of water column

3 Typical Construction

Body Aluminum carbon steel stainless steel

Pallets SS or composite

Seals BunaN Viton PTFE

Optional Flame arrestor weatherhood intake screen

4 Applications

Breather valves are used in

Petroleum storage gasoline diesel ethanol

Chemical tanks solvents organics corrosive liquids

Water wastewater systems

API atmospheric tanks

Biogas or vapor recovery systems

5 Important Specifications

When selecting a breather valve you need

A Setpoints

Pressure setpoint eg 1 to 8 WC

Vacuum setpoint eg 1 to 4 WC

B Flow Capacity

Must meet API 2000 venting requirements for

Normal breathing

Fire emergency venting

C Material Compatibility

Based on stored liquidvapor

D Accessories

Flame arrestor endofline or inline

Weatherhood for outdoor use
